Training kits system... all in one!
Discover a revolutionary way to learn power electronics with our all-in-one training kit, designed for both students and researchers. This innovative system brings theory to life with hands-on modules—including three-phase rectifiers, thyristors, DC/DC converters, and three-phase inverters—that cover a wide range of power conversion applications.
Key Features:
- Customizable: Available in IGBT, MOSFET, SiC MOSFET, diodes, and thyristor.
- User-Friendly: safety-shouldered connectors.
- Easy access for different experiments.
- Experiment book with learning outcomes and applications.
- Easy Maintenance: Modular design.
- Visible & Safe: transparent back cover.
- Durable & Portable: Heavy-duty, compact steel enclosure.
POWER ELECTRONICS EDU MODULES
Discover a revolutionary way to learn power electronics with our all-in-one training kit, designed for both students and researchers. This innovative system brings theory to life with hands-on modules—including three-phase rectifiers, thyristors, DC/DC converters, and three-phase inverters—that cover a wide range of power conversion applications.
A standout feature is the transparent back cover, which reveals the real shape of each component, bridging the gap between schematic symbols and physical hardware. Integrated LED indicators further enhance the learning experience by lighting up the specific components involved in each experiment, guiding users through the wiring process with clarity and precision.
To support your educational journey, the kit comes with a comprehensive companion book detailing experiments and expected outcomes. This resource ensures a deep understanding of each concept, empowering users to master both fundamental and advanced power electronics techniques.
Experience the future of power electronics education—where interactive learning meets innovative design, inspiring a new generation of engineers and researchers.
Key Features:
- Customizable: Available in IGBT, MOSFET, SiC MOSFET, diodes, and thyristor.
- User-Friendly: safety-shouldered connectors.
- Easy access for different experiments.
- Experiment book with learning outcomes and applications.
- Easy Maintenance: Modular design.
- Visible & Safe: transparent back cover.
- Durable & Portable: Heavy-duty, compact steel enclosure.

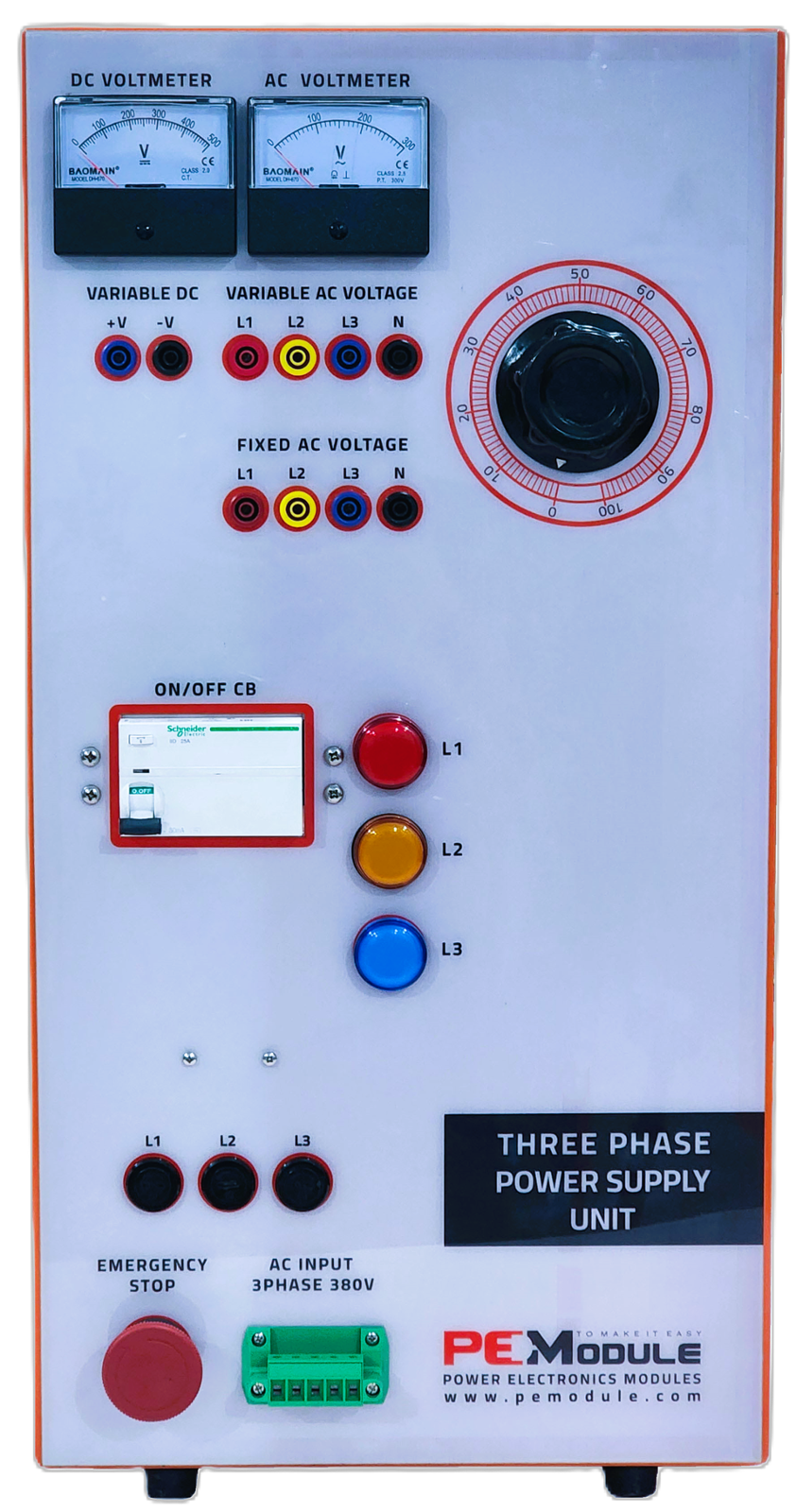

THREE PHASE POWER SUPPLY UNIT
Three Phase Power Supply Module is a Variable AC/DC Power Supply Module up-to 380 V AC/2A. A standout feature is the transparent back cover, which reveals the real shape of each component, bridging the gap between schematic symbols and physical hardware.
Key Features:
- High-quality auto-transformer.
- Emergency Stop.
- Earth Detector protection.
- Circuit Breaker protection.
- Built-in three-phase rectifier for DC voltage supply (optional).
- Power LED indicator.
- Power switch.
- Fuse Protection.
- Analog Voltmeter for AC Output Voltage Monitoring.
- Analog Voltmeter for DC voltage monitoring.

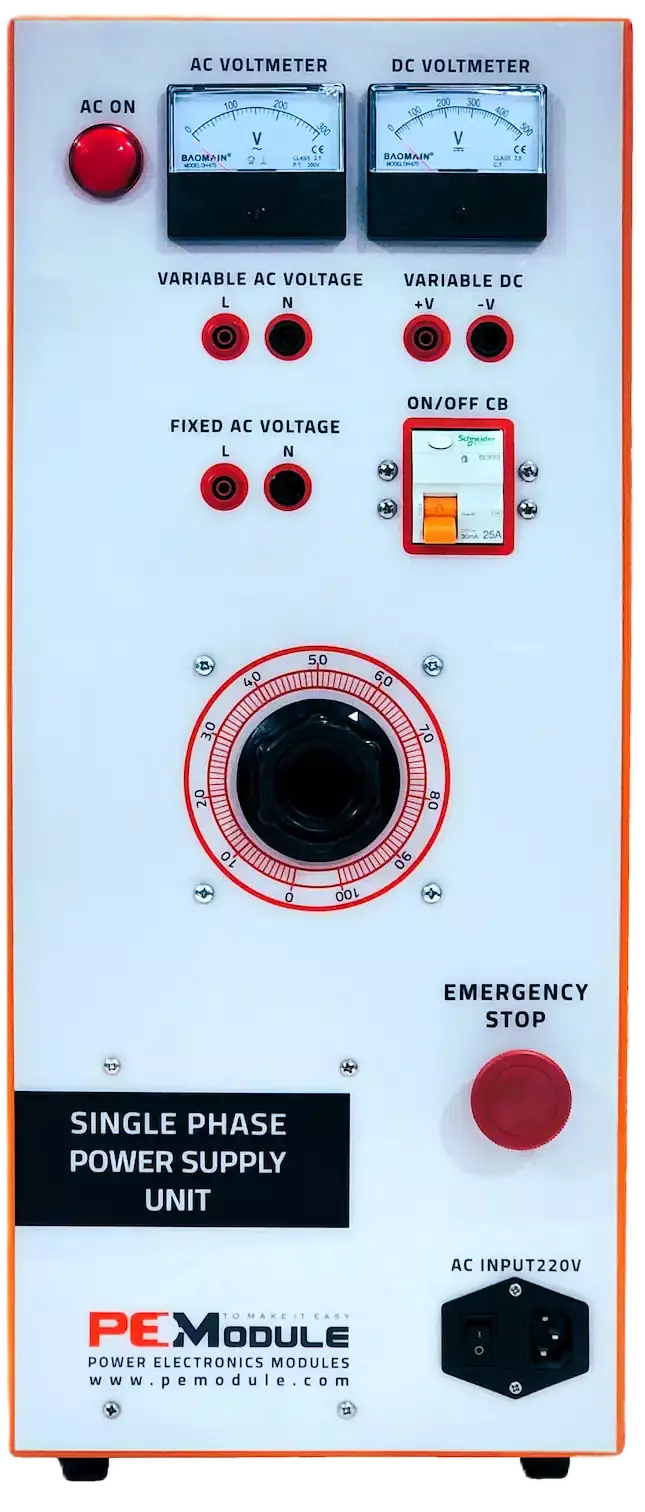

SINGLE PHASE POWER SUPPLY UNIT
A single-phase power supply module is a variable AC/DC power supply module up to 220 V AC/2A. A standout feature is the transparent back cover, which reveals the real shape of each component, bridging the gap between schematic symbols and physical hardware.
Key Features:
- High-quality auto-transformer.
- Emergency Stop.
- Earth Detector protection.
- Circuit Breaker protection.
- Built-in single-phase rectifier for DC voltage supply (optional).
- Power LED indicator.
- Power switch.
- Fuse Protection.
- Analog Voltmeter for AC Output Voltage Monitoring.
- Analog Voltmeter for DC Voltage Monitoring.

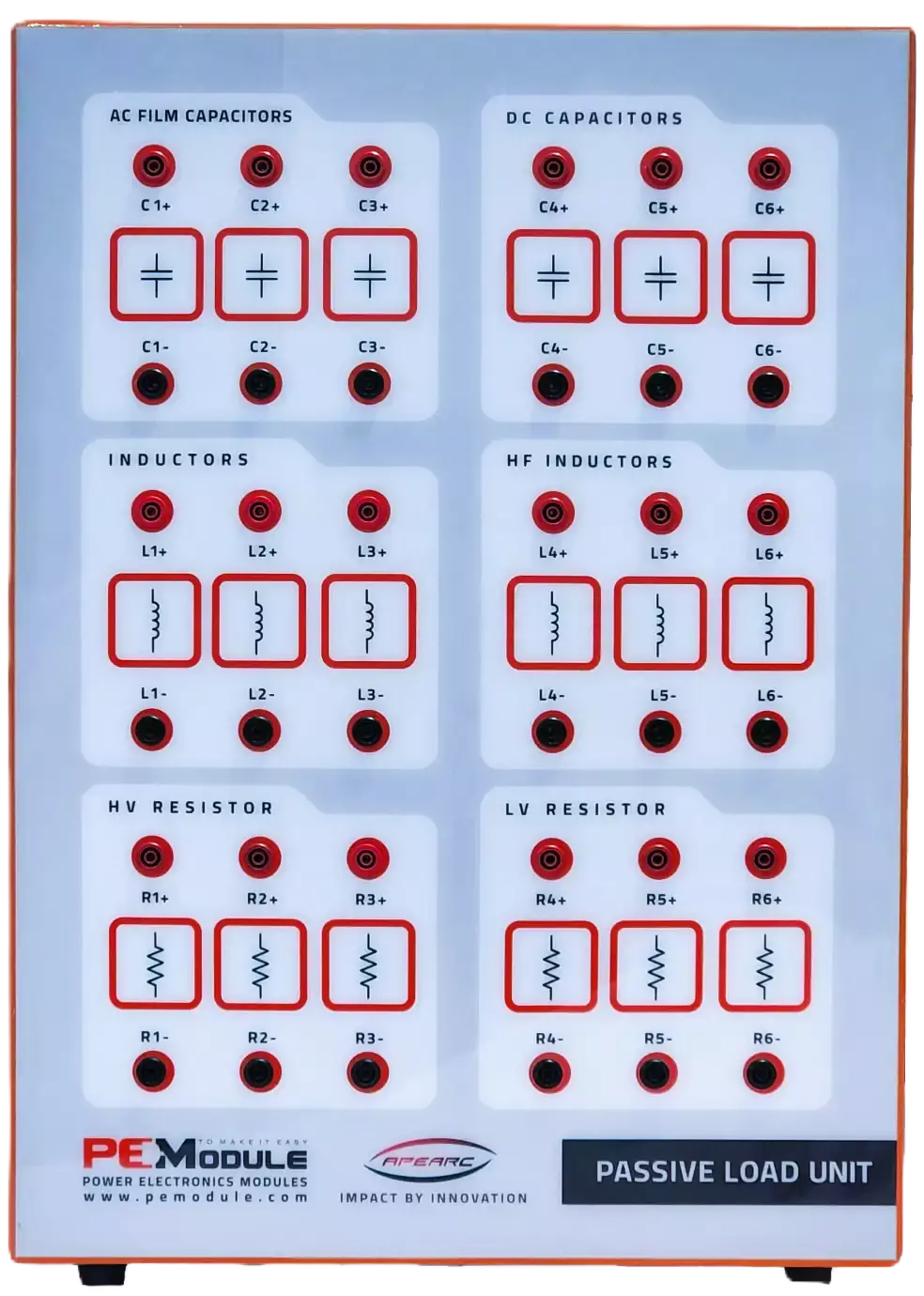

PASSIVE LOAD UNIT
The Passive Load Unit is a hands-on kit that makes learning electronics simple. It includes modules with different inductors, capacitors, and resistors. Use it to build circuits like filters and loads in both three-phase and single-phase setups—perfect for students and hobbyists.
Main features:
- Inductors:
- High-Frequency: 3mH/2.5A inductors.
- Low-Frequency: 50mH/2A inductors.
- Capacitors:
- DC: 195uF/800V electrolytic capacitors.
- AC: 20uF/380VAC film capacitors.
- Resistors:
- Low-Value: 100Ω/200W resistors for low voltage circuits.
- High-Value: 1800Ω/200W resistors for high voltage circuits.
- Flexible Setups:
- Easily build three-phase or single-phase circuits.
- Combine components in series or parallel to change circuit behavior.
- Practical Learning:
- Perfect for lab experiments and hands-on projects.
- Explore filters, loads, and other basic circuit designs.
