PLUGY HP system... make it easy!
PLUGY HP Boards | Signal Collector
PLUGY HP Boards | Signal Collector

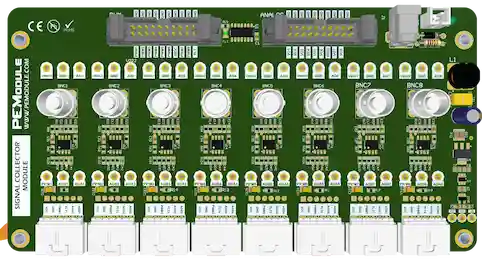

Discover PLUGY HP Boards—streamline PWM, Signal collector Board handles signals form up-to 8 switches (8 PWM) and 8 current or voltage transducers with the required signal conditioning circuits.
Main Features:
- Single IDC connector for all PWM input signals accepts TTL(0-5V) or CMOS (0-3V) PWMs.
- Single IDC connector for all analog signals unipolar (0-3V).
- BNC connectors for analog output signals bi-polar (-3V to +3V) for oscilloscope monitoring, HIL interface or data acquisition interface with the required signal conditioning.
- Test points for all control signals PWM or analog.
PLUGY HP | Rectifier Module
PLUGY HP | Rectifier Module

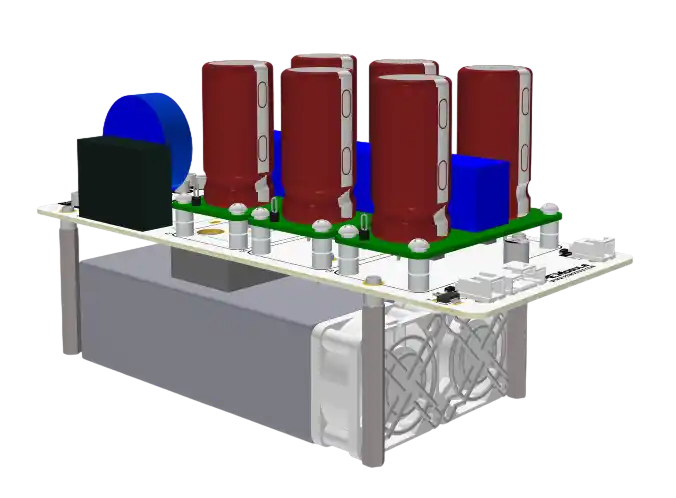

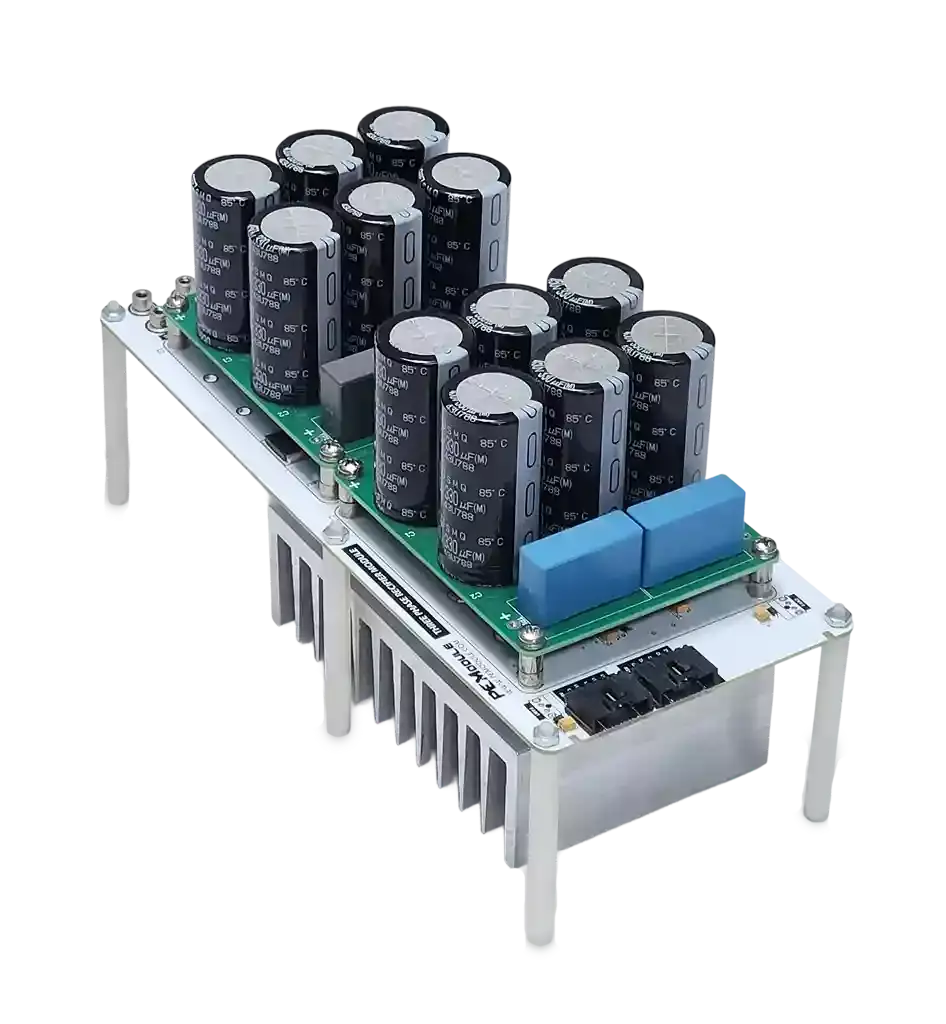

Our modular Rectifier Platform is designed to make your power electronics projects easier, safer, and more flexible. Whether you’re working in a lab, doing research, or building industrial systems, this rectifier is ready to adapt to your needs.
Main Features:
- Different Rectifier Models with different rates.
PLUGY HP | General Filter Module
PLUGY HP | General Filter Module

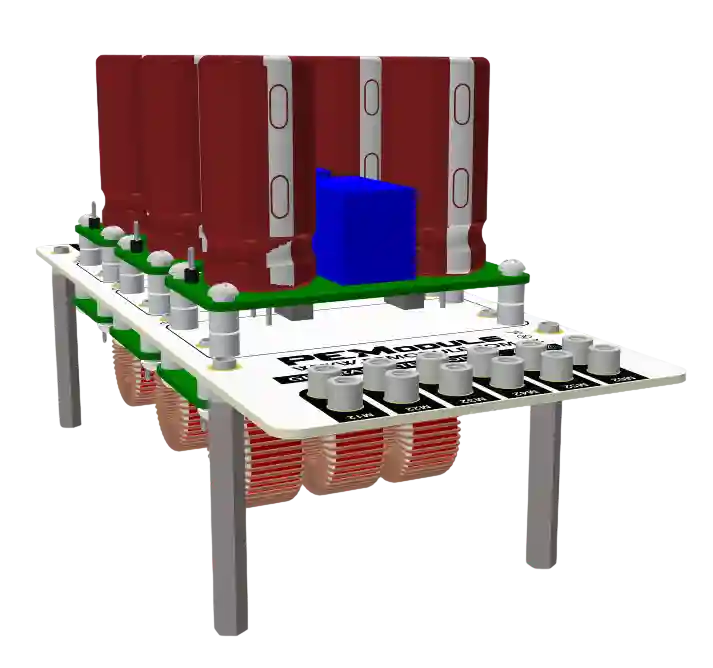

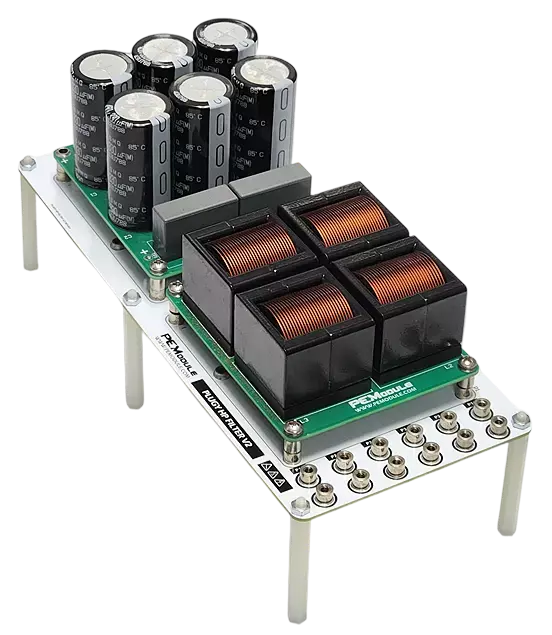

PLUGY High-Power General Filter carrying up-to six modules can be inductors and/or capacitors based on application. It can work as a single phase LC low pass filters (LPF), three phase LC low pass filters (LPF), LCL filter ..... etc based on connected modules and user connection.
Main Features:
-Up-to 6 Easy To Replace Passive Modules 3 TOP and 3 BOTTOM (Capacitors or High Frequency Inductors)
PLUGY HP Boards | TI Launchpad 28379D Dock station
PLUGY HP Boards | TI Launchpad 28379D Dock station

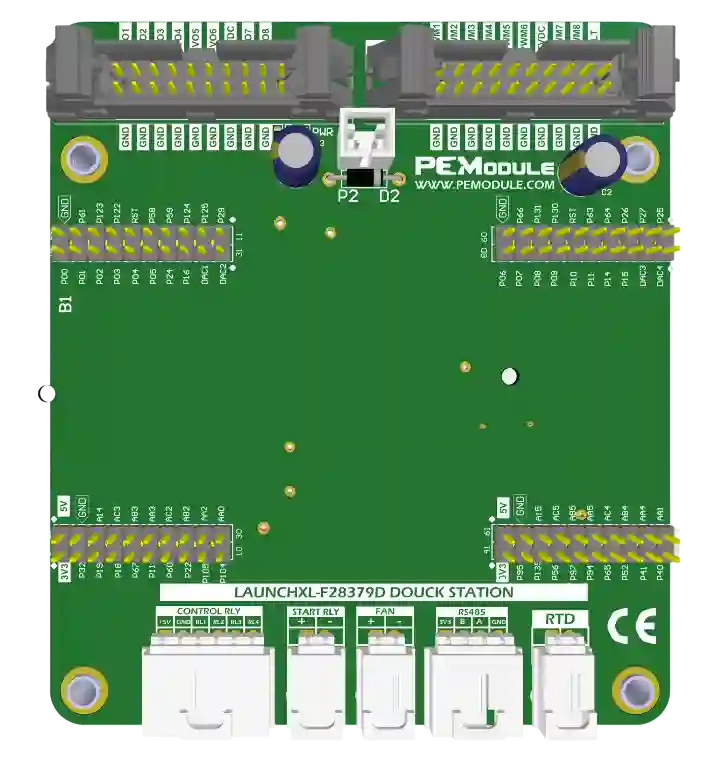

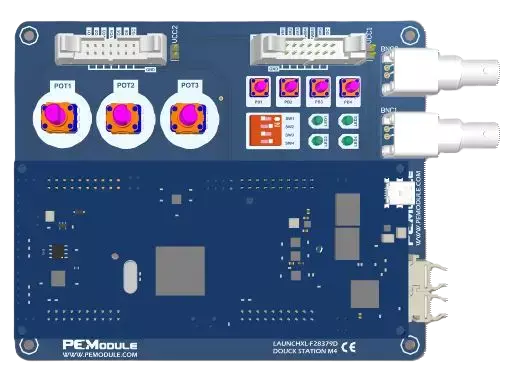

Discover PLUGY HP TI Board engineered for seamless integration with the TI LAUNCHXL-F28379D, offering a true plug-and-play experience—no additional wiring required. Designed for power electronics developers and system integrators, the board consolidates essential analog, digital, and communication interfaces into a compact, robust module ready for immediate deployment and easy stacking with PLUGY HP LEG modules.
Main Features:
- Ready to use with TI LAUNCHXL-F28379D without any additional wires.
- Single Connector for All 8 PWM Signals.

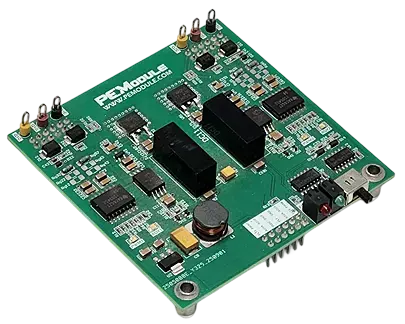

PLUGY HP GATE DRIVER MODULE
- High Isolation voltage up-to 5KV.
- High Common-Mode Transient Immunity (CMTI) up to 100KV/usec.
- Optional fault indicator in case of SiC-MOSFET/IGBT short circuit or Gate Drive Supply under voltage.
- Including optional Dead-time between bridge switches.
- Active miller clamping protection for turn-on and turn-off.
- TEST Points for SiC-MOSFET/IGBT terminals for easy voltage monitoring.
- Turn-on and Turn-off Gate resistor control.
- Multiple Output voltage for different switches compatibility.

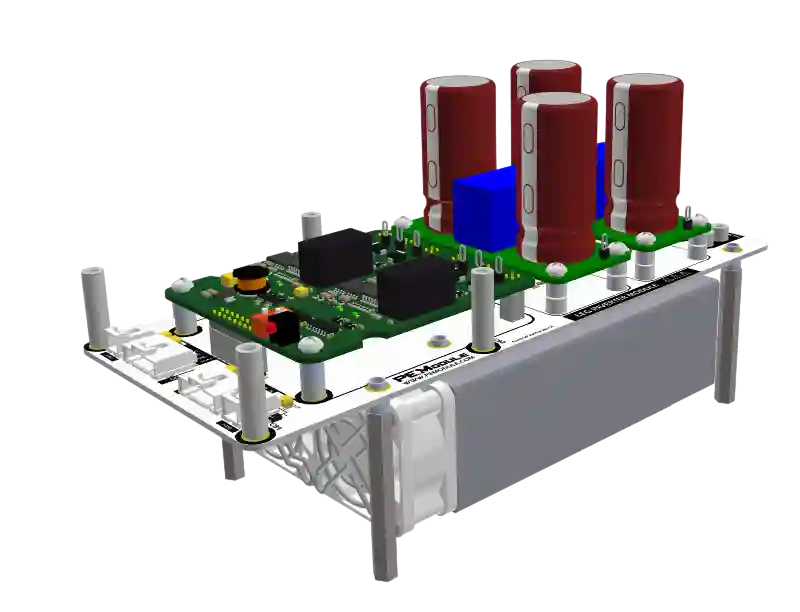

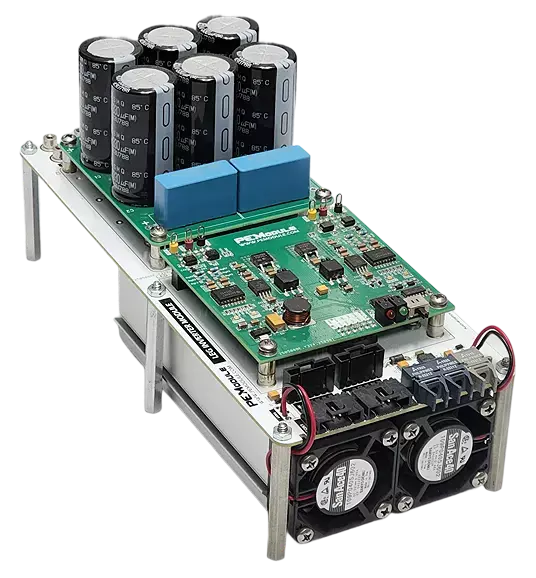

PLUGY HP MODULES
- Pluggable and easy for replacement in case of failure.
- High Current Low ESR DC-Link DC Film capacitors
- Big verity of IGBTs and SiC MOSFETs rates.
- Easy for replacement Pluggable DC-link Capacitor Sub Modules based on Electrolytic Capacitor (different voltage and capacitance values).
- Easy for replacement Pluggable Gate Driver Sub Module.
- Option Forced Air Convection cooling up-to 120W Power dissipation.
- Optional On-Board output current measurement.
- Optional On-Board DC Link Voltage measurement
- Extendable can be repeated for any number of phases or levels.
