PLUGY EDU series... make it Safe!

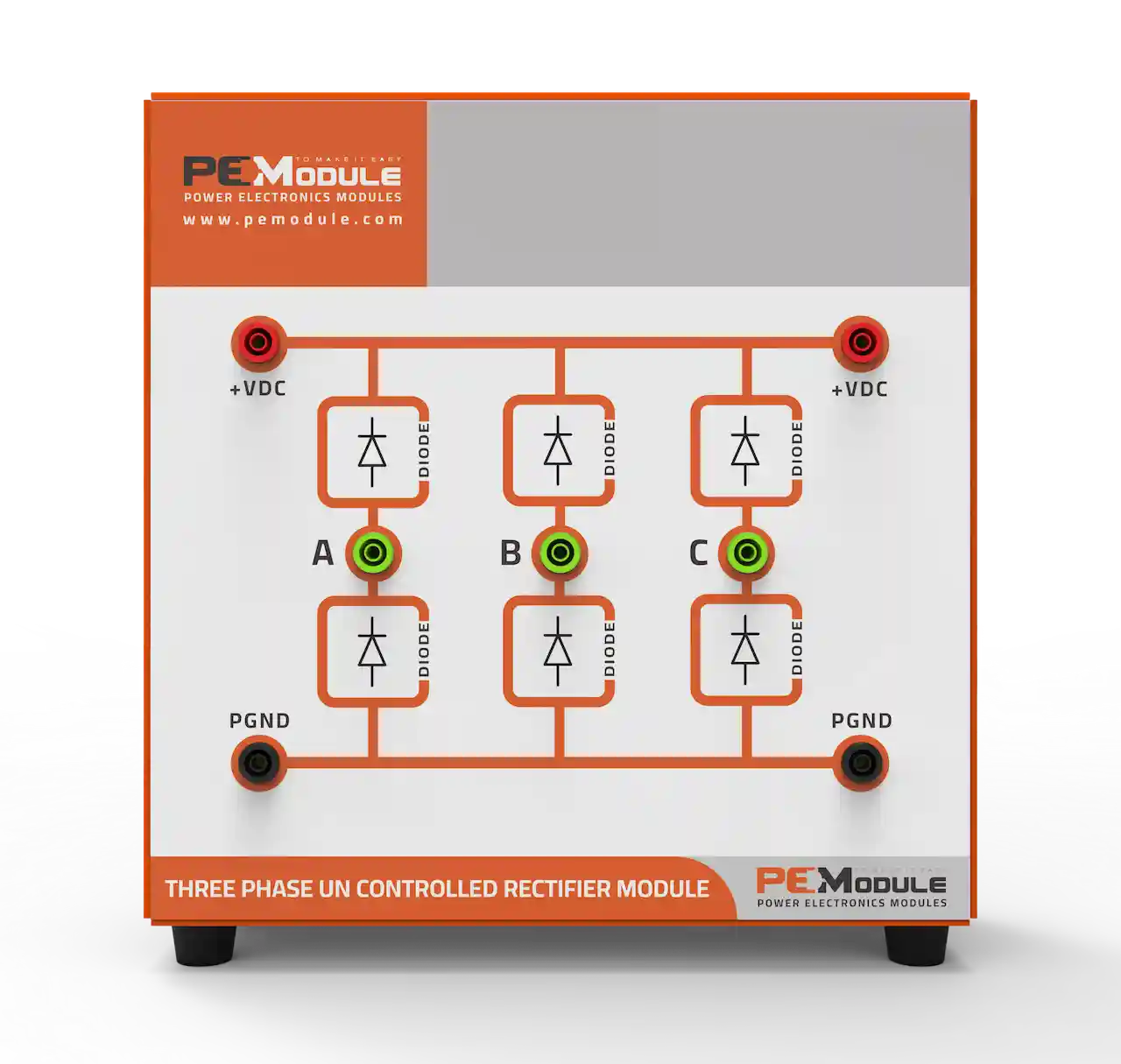

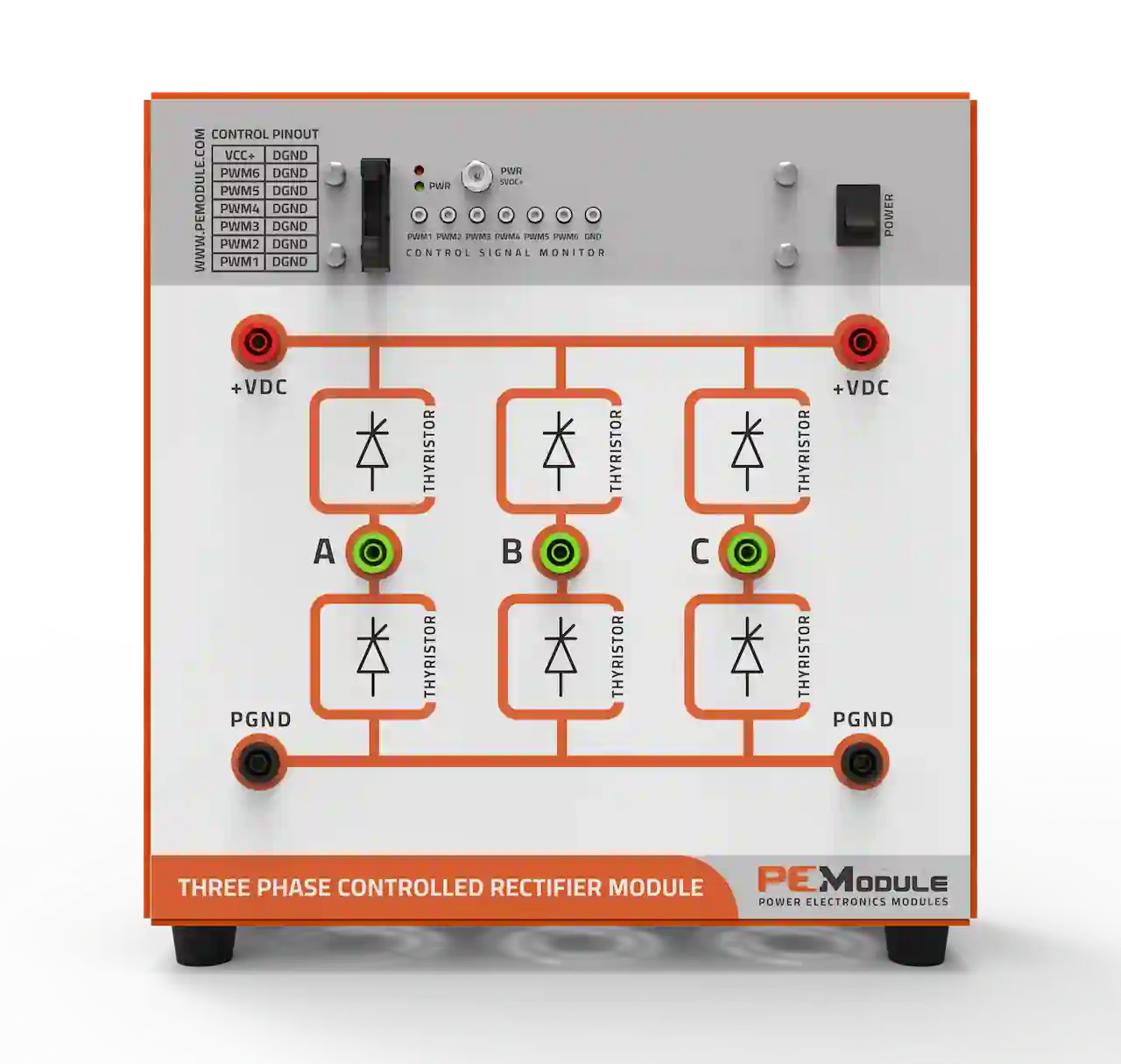

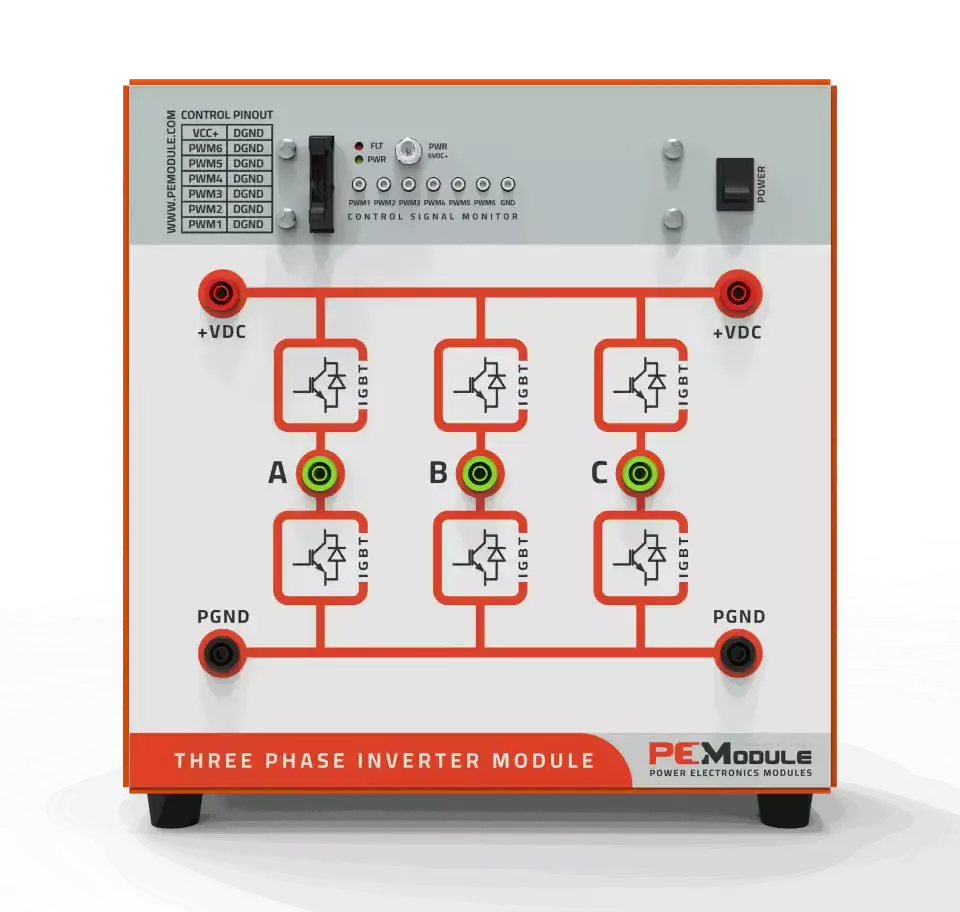

POWER ELECTRONICS EDU MODULES
- Customizable: Available in IGBT, MOSFET, SiC MOSFET, diodes, and thyristor.
- User-Friendly: safety-shouldered connectors, open PWM terminals.
- Control Integration: Works with HIL, DSP, and microcontrollers.
- Easy Maintenance: Modular design.
- Visible & Safe: transparent back cover.
- Durable & Portable: Heavy-duty, compact steel enclosure.

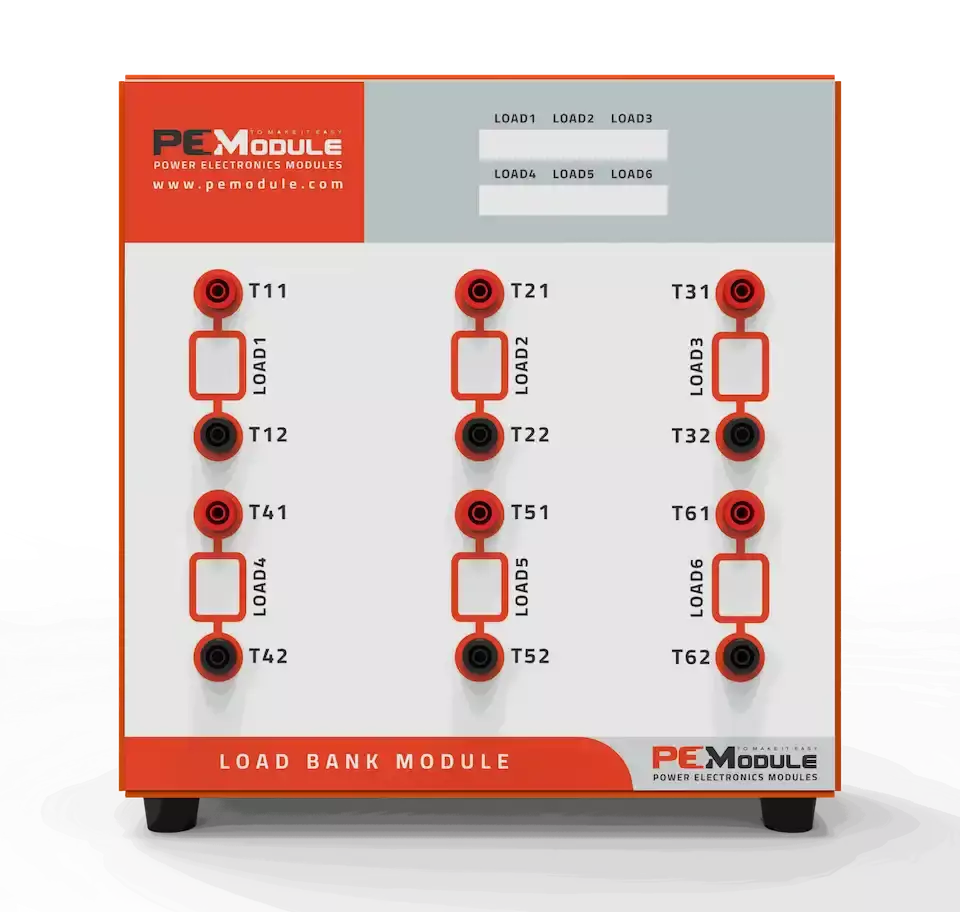

POWER ELECTRONICS EDU PASSIVE MODULE
- Versatile Configurations: Offers AC, DC, and combined inductive/capacitive load setups.
- High-Quality Components: Uses premium capacitors and inductors for reliable performance.
- Modular Design: Easily customize and configure for your specific needs.
- Durable & Safe: Built to last with a focus on safe, efficient operation.
- Easy Integration: Simple to incorporate into any project, suitable for all experience levels.
- Visible: transparent back cover for simple learning.
- User-Friendly: safety-shouldered connectors.

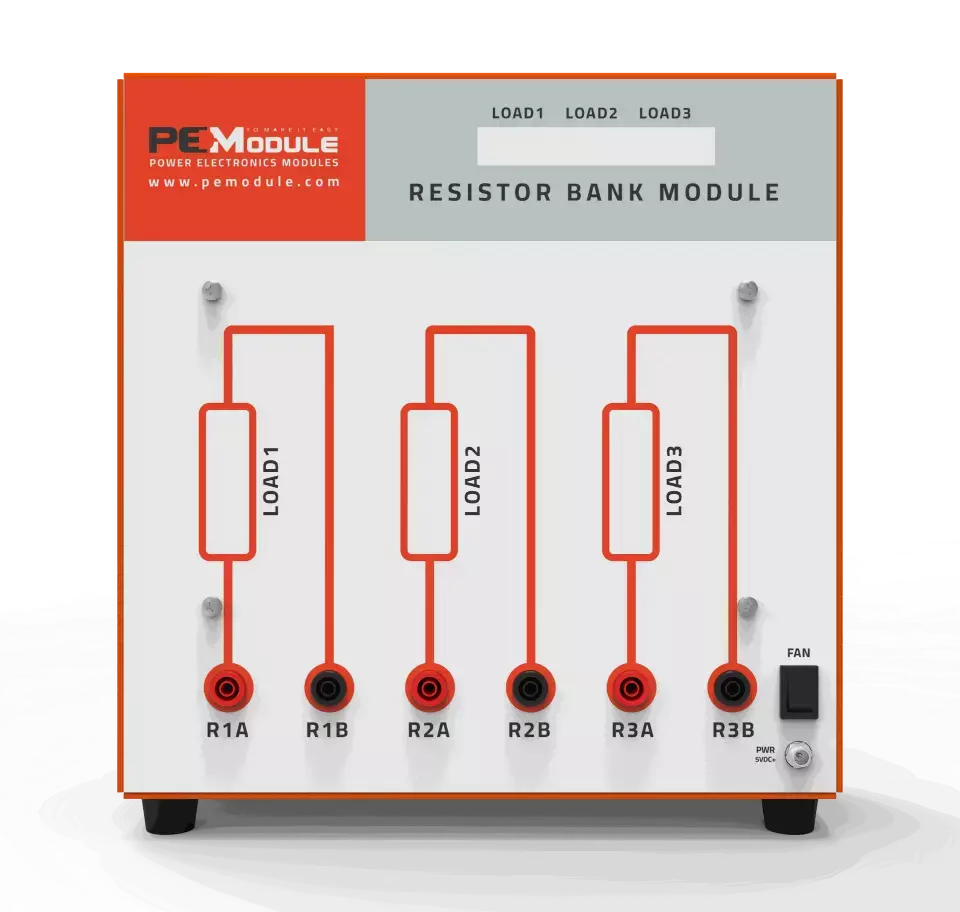

POWER ELECTRONICS EDU LOAD MODULE
- Appropriate for AC three-phase resistive load.
- Appropriate for AC/DC single-phase resistive load.
- Up to 750 W total resistive load (250 W per each).
- High temperature stability resistor (100 PPM).
- Including heat sink and cooling system.
- Safety shouldered Power Banana for easy connection.
- High-efficiency forced air cooling system.
- Clear transparent back cover for system components demonstration.
- Heavy-duty, compact-size steel enclosure for high durability and easy to move.

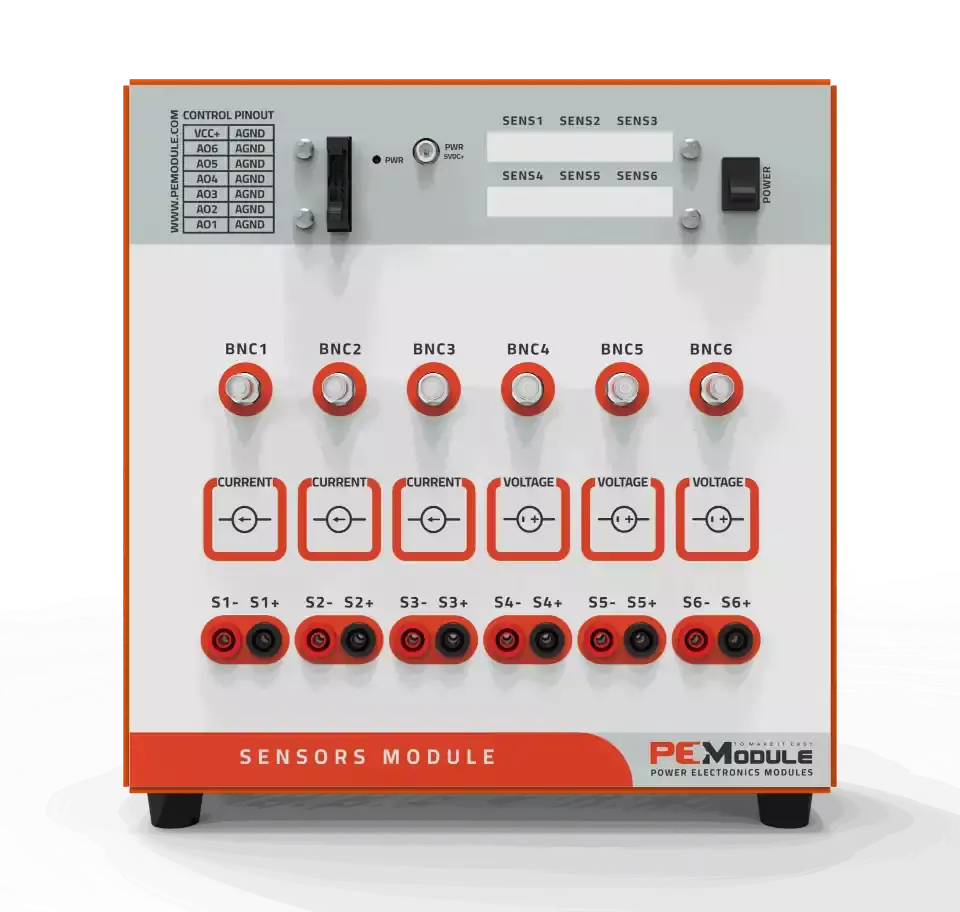

POWER ELECTRONICS EDU TRANSDUCER MODULE
The PLUGY EDU series represents a transducer module that is comprised of 6 sensors: three fully isolated voltage transducers AC/DC capable of measuring voltages up to 400V RMS, and three fully isolated current transducers AC/DC capable of measuring currents up to 5A RMS, with a bandwidth of up to 200KHz.
Main features:
- Versatile Transducer Options: Wide range of voltage and current ratings for high accuracy.
- Measurement Compatibility: Suitable for AC/DC waveforms.
- User-Friendly: Compatible with data acquisition, digital oscilloscopes, HIL, DSP, and microcontrollers.
- High Performance: 0.5% transducer linearity, 1% gain accuracy, 50 ppm/C temperature stability.
- Modular Design: Easy maintenance and upgrades.
- Connectivity: Safety-shouldered Power Banana connectors.
- Visibility: Transparent back cover.
- Durability: Heavy-duty, compact steel enclosure.
- Comprehensive: Includes three voltage and three current transducers.
