PLUGY DIscovery series ... make it simple!

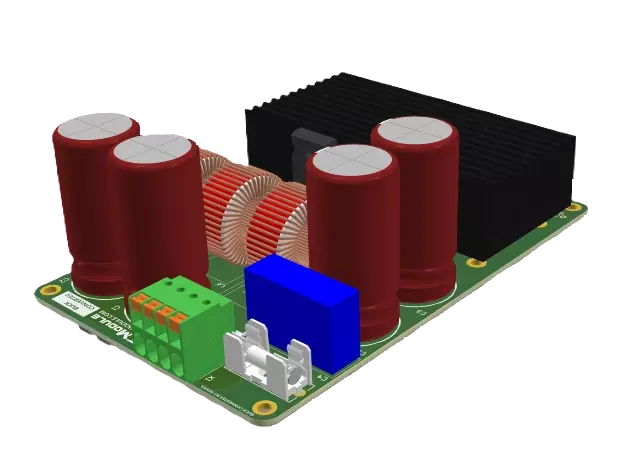

PLUGY DISCOVERY DC to DC Converters
- Different varieties of IGBTs and MOSFETs with SiC Diode.
- Test Points for all switches terminals
- Fuse over-current protection.
- Optional isolated measurement.
- Accept TTL/CMOS input control PWM Signals
- Including thermal cooling
- No external components needed
- Up-to 50KHz PWM frequency.
- Isolated Gate Driver with miller effect protection.

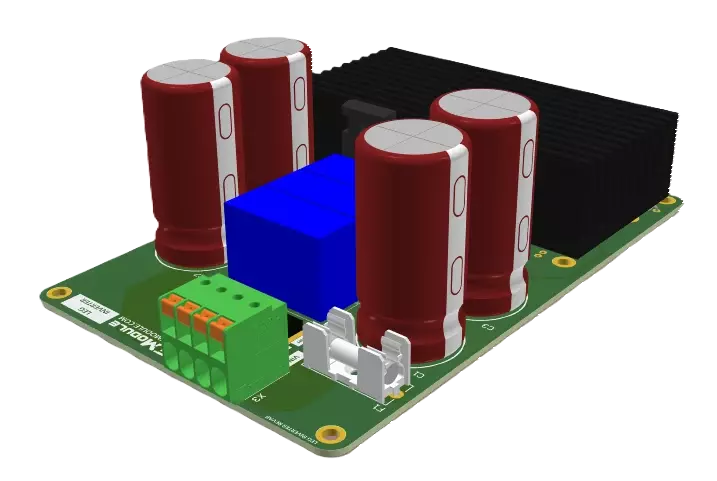

PLUGY DISCOVERY LEG Inverter
- Different varieties of IGBTs and MOSFETs .
- Test Points for all switches terminals
- Optional isolated measurement.
- Accept TTL/CMOS input control PWM Signals
- Including thermal cooling
- No external components needed
- Up-to 50KHz PWM frequency.
- Isolated Gate Driver with miller effect protection.

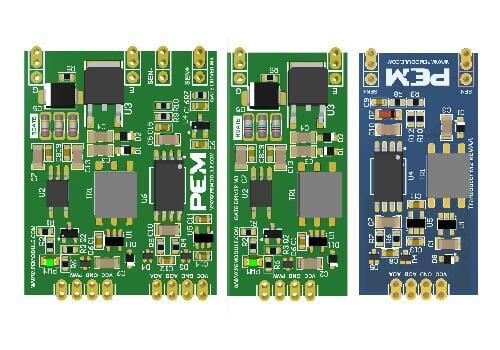

Build Your Own Power Electronics Converter
- Gate Driver Main Features:
-IGBT or MOSFET
-Up-to 50KHz PWM frequency.
-No external passive components needed
-Accept TTL/CMOS input PWM Signals
-High isolation level 3KV.
- Transducer Main Features:
- General Purpose transducer can be used for current or voltage measurement
- DC or AC wave forms.
- 200KHz bandwidth.
- Excellent linearity of 0.5% and gain accuracy of 1%.
- High isolation level 3KV.

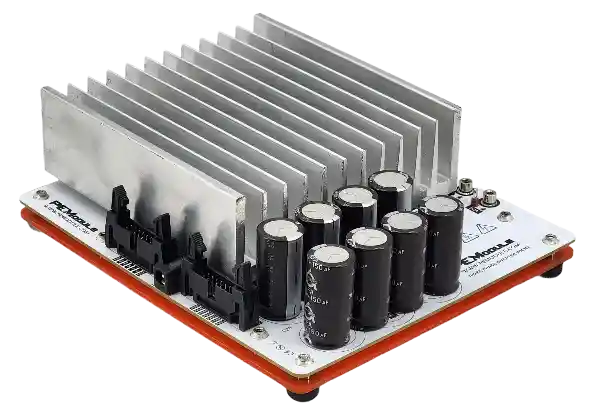

IPM Three Phase Inverter Motor Drive
High-performance cost-effective 1, 2, and 3 HP three-phase inverter for motor drives applications with voltage and current measurement based on non-isolated IPM technique including DC Link capacitor and protections
Main features:
- Idea for home appliances applications and cost effective motor drives
- Motor drives for AC induction machine single phase/three phase or PMSM.
- Compact size.
- High Current Low ESR DC-Link capacitors.
- Overload fuse protection.
- Over voltage varistor protection.
- DC link voltage measurement.
- Including thermal management (no need for external heat sink).
- Including bootstrap gate drivers for all IGBT switches.

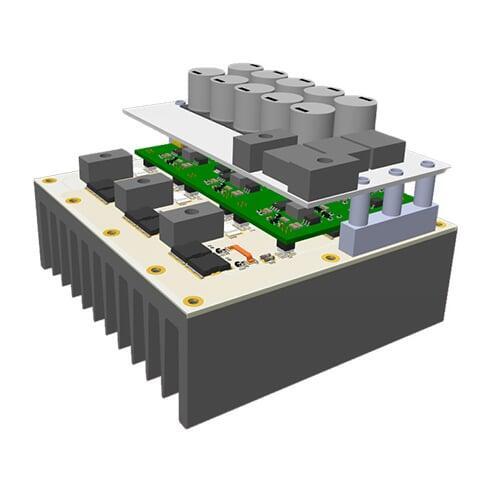

BLDC Motor Drive
Three Phase BLDC Motor Drive 2KW and 5KW 24V/36V/48V/60V has been developed to deliver high performance and reliability with fully isolated gate drivers and measurement, making it ideal for various applications requiring precise motor control and efficient power conversion.
Applications:
- Electric golf car
- Electric Forklift
- Electric scooter
- Electric Bike
