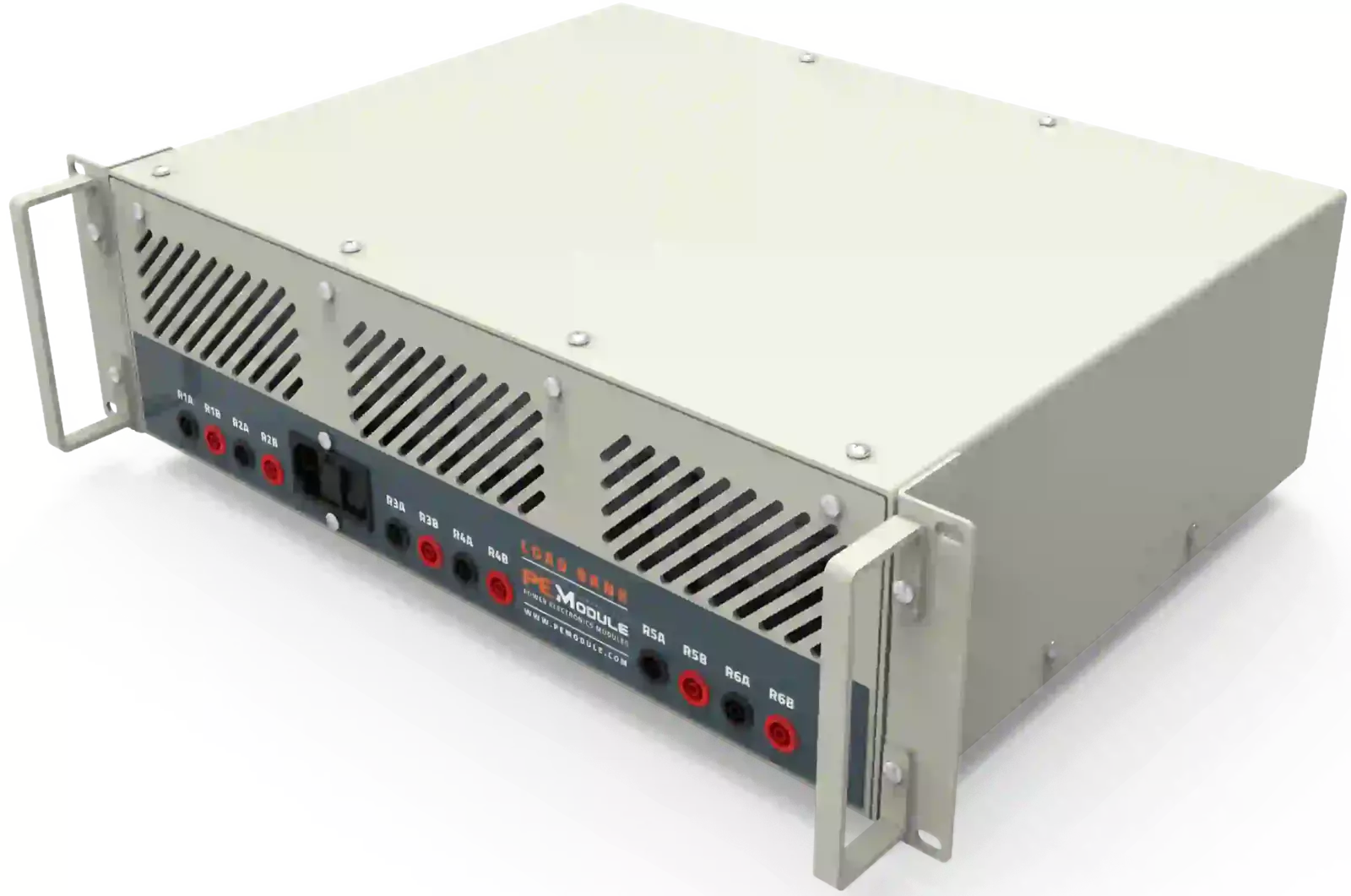

Precision Rack Mount Resistor Load
Applications:
- Industrial Testing: "Validate generators, UPS systems, and inverters."
- Renewable Energy: "Test solar/wind converters with precision."
- R&D Labs: "Configurable resistors for prototyping circuits."
PEM.RACK.6R.3U.A.XXXX.XXX
Description:
The PEModule Rack Mount Resistor Load is expertly crafted to provide precise and efficient testing for a wide range of resistive loads. Designed for versatility and reliability, it is an essential tool for electrical testing applications
Main Features:
- Compatible with 19” racks, 3U heavy-duty compact rack size.
- AC three-phase or single-phase resistive loads with series and parallel combinations.

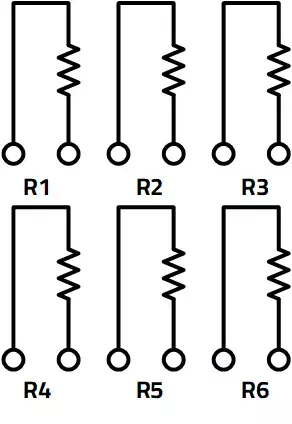

- Includes six power resistors with various values.
- Available in multiple load options, up to 3 KW.
- Temperature Stability: Maintains stability with up to 100 PPM.
- Quiet Operation: Cooling noise below 45 decibels.
- High Precision: resistor accuracy with 10% tolerance.
- Lightweight: Weighs 16 kg.
Follow us
Specifications Per Resistor
Specifications Per Resistor
| Series | Voltage | I max Per Resistor | Pmax |
|---|---|---|---|
| 50 Ω | 158 V | 3.16 A | 500 W |
| 100 Ω | 223 V | 2.24 A | 500 W |
| 200 Ω | 316 V | 1.58 A | 500 W |
Technical Specifications Table
Technical Specifications Table
| Parameter | Value |
|---|---|
| Load Capacity | Up to 3 KW |
| Resistor Tolerance | ±10% |

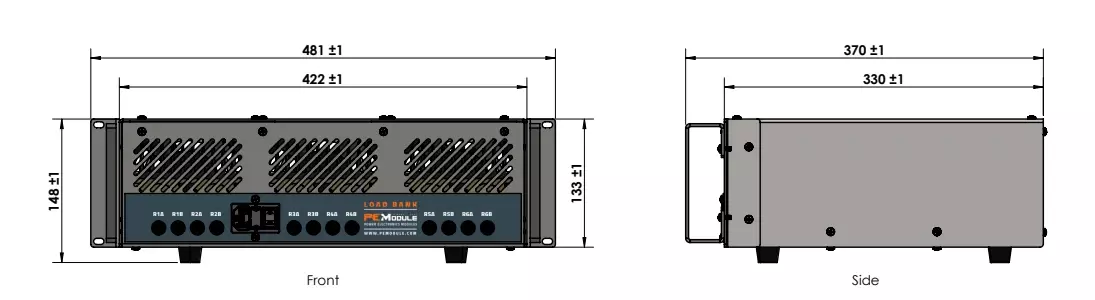

| Dimensions | 3U (5.25” H) x 19” Rack Width |
| Weight | 16 kg |
| Cooling Noise | <45 dB |
