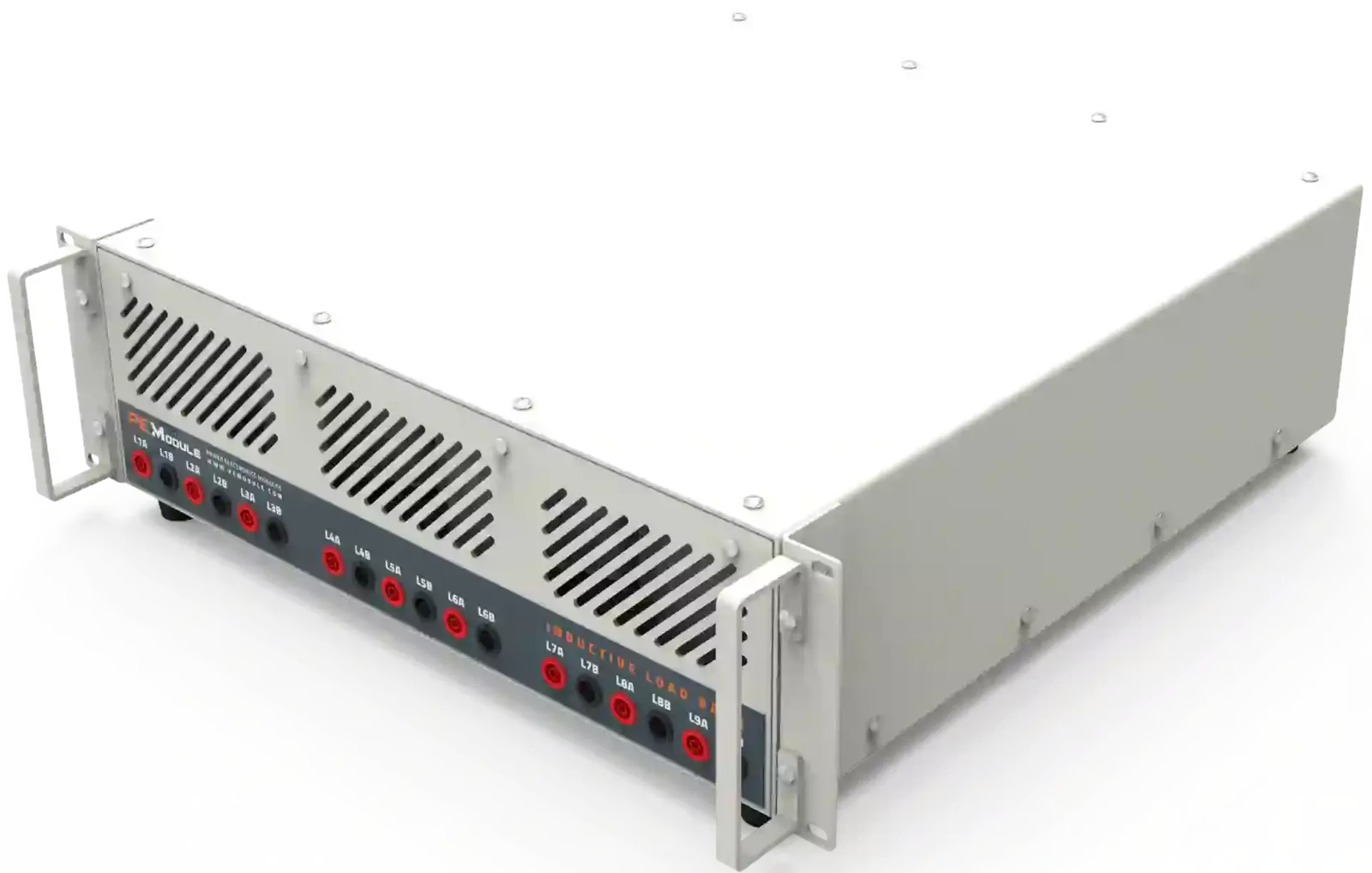

Precision Rack Mount Inductive Load
Applications:
- Industrial Testing: "Validate generators, UPS systems, and inverters."
- Renewable Energy: "Test solar/wind converters with precision."
- R&D Labs: "Configurable Inductors for prototyping circuits."
PEM.RACK.9L.3U.A.XX.X.XXX
Description:
The PEModule Rack Mount Inductive Load Bank is engineered for precise and efficient testing of inductive loads, making it indispensable for Power electronics testing. This load bank ensures reliable performance in a straightforward, user-friendly design, making it ideal for a wide range of applications
Main Features:
- Compatible with 19” racks, 3U heavy-duty compact rack size.
- AC three-phase or single-phase combinations.

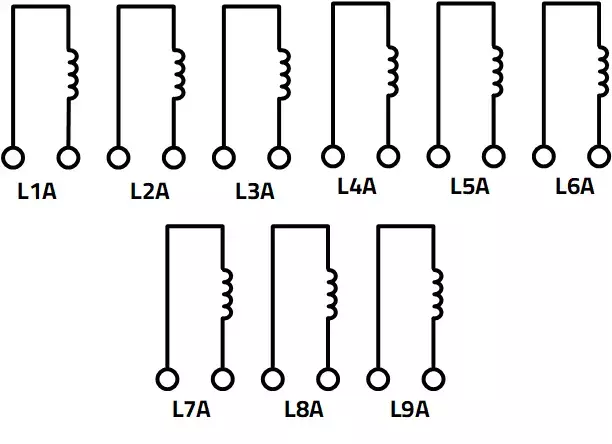

- Includes 9 power Inductors with various values.
- Various Load Ranges: Available in multiple load options
- High Precision: Inductance accuracy with 10% tolerance. Accuracy with 10% tolerance.
- Lightweight: based on inductor value.
Follow us
Specifications Per Inductor
Specifications Per Inductor
| Inductance (mH) | DC Amp max (A) | ESR ( Ω) | Total Weight (kg) |
|---|---|---|---|
| 1 | 20 | 0.013 | 18.01 |
| 2.5 | 20 | 0.022 | 32.29 |
| 30 | 5 | 0.23 | 34.34 |
| 1 | 30 | 0.009 | 32.29 |
| 2.5 | 30 | 12.5 | 58.83 |
| 5 | 10 | 0.04 | 30.25 |
| 10 | 10 | 0.07 | 40.46 |
| 20 | 10 | 0.013 | 49.44 |
| 2.5 | 10 | 0.044 | 19.03 |
| 10 | 5 | 0.16 | 19.03 |
| 15 | 4 | 0.25 | 19.03 |
| 60 | 2 | 0.7 | 18.01 |
Technical Specifications Table
Technical Specifications Table
| Parameter | Value |
|---|---|
| Inductor Tolerance | ±10% |

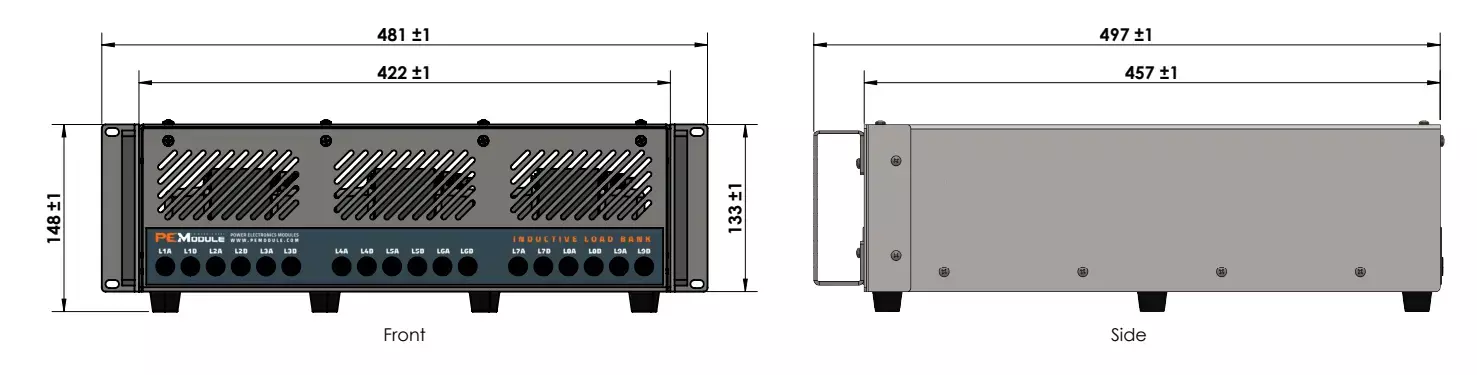

| Dimensions | 3U (5.25” H) x 19” Rack Width |
| Weight | various weight |
