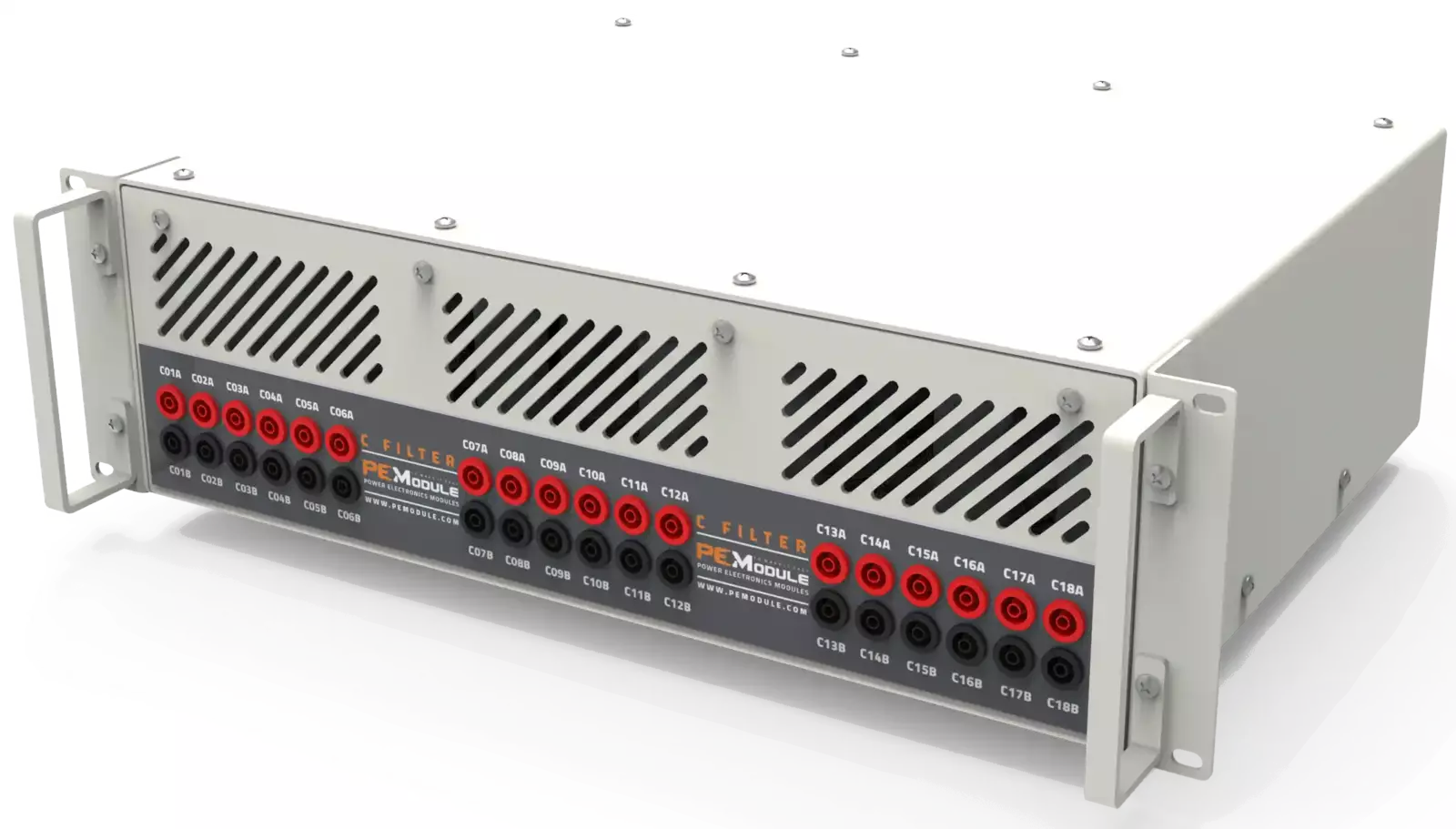

Precision Rack Mount Capacitive Load
Applications:
- Industrial Testing: "Validate generators, UPS systems, and inverters."
- Renewable Energy: "Test solar/wind converters with precision."
- R&D Labs: "Configurable Inductors for prototyping circuits."
PEM.RACK.18C.3U.A.XX.X.XXX
Description:

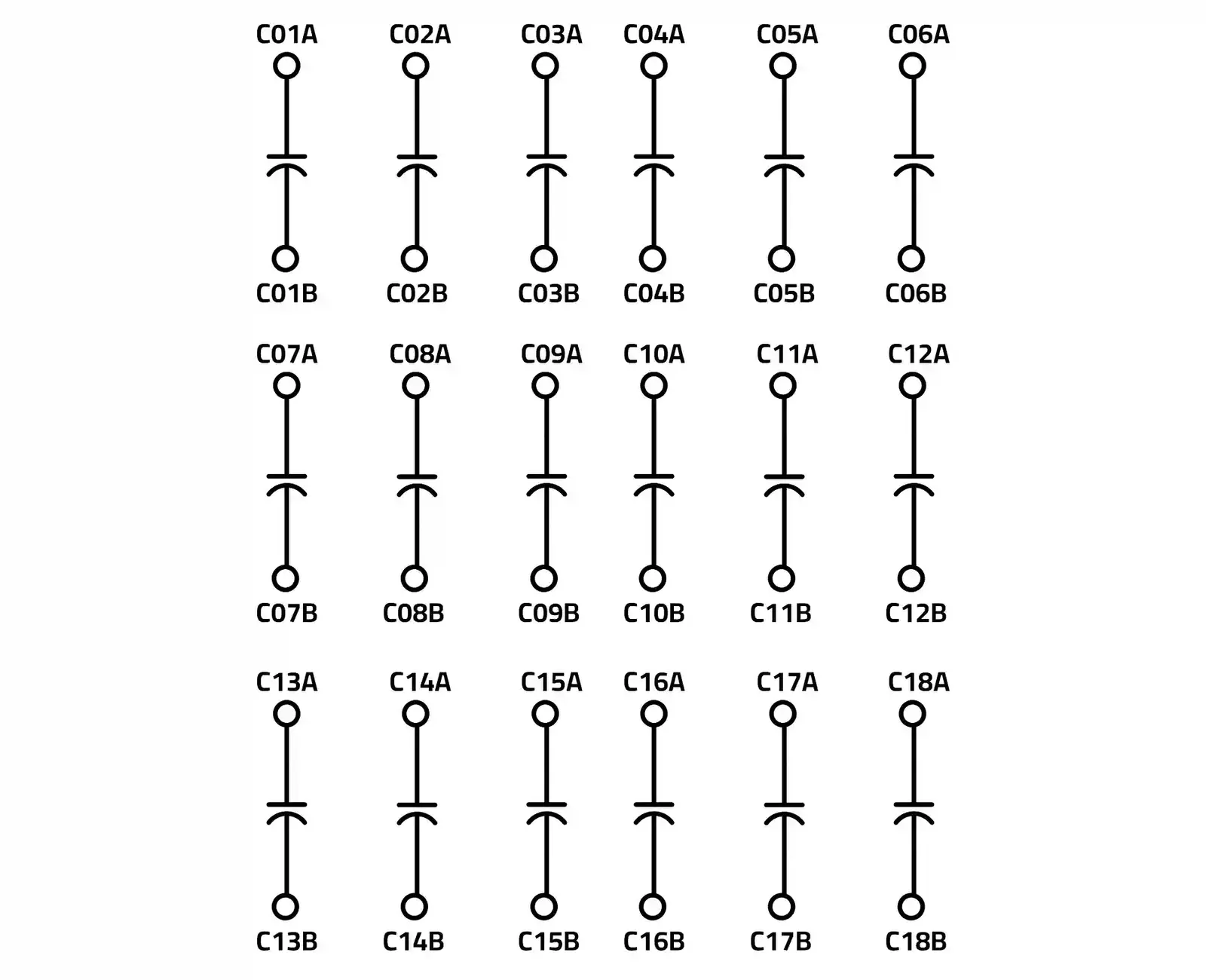

The PEModule Rack Mount Capacitive Load Bank, utilizing metallic AC film capacitors, is designed for efficient testing of capacitive loads, Power Factor Correction (PFC) applications, and low-pass (LP) filter applications. Engineered to meet the rigorous demands of Power electronics testing, this load bank ensures accuracy, reliability, and ease of use. Contains 3 sets of capacitors. Each set composed of 6 capacitors. Each set can be selected with different value
Main Features:
- Compatible with 19” racks, 3U heavy-duty compact rack size.
- AC three-phase or single-phase Capacitive load combinations.
- Includes 18 power Capacitor with various values.
- Various Load Ranges: Available in multiple load options.
- High Precision: Inductance accuracy with 10% tolerance. Accuracy with 10% tolerance.
- Lightweight: Weighs only 9 kg for easy handling
Follow us
Specifications Per Capacitor
Specifications Per Capacitor
| Part No | C (μF) | VAC Max(V) |
|---|---|---|
| PEM.RACK.18C.3U. A.00.10. 0450 | 10 | 450 |
| PEM.RACK.18C.3U. A.00.15.0450 | 15 | 450 |
| PEM.RACK.18C.3U. A.00.20.0450 | 20 | 450 |
| PEM.RACK.18C.3U. A.00.30.0450 | 30 | 450 |
| PEM.RACK.18C.3U. A.00.40.0450 | 40 | 450 |
| PEM.RACK.18C.3U. A.00.05.0450 | 5 | 450 |
| PEM.RACK.18C.3U. A.00.07.0450 | 7.5 | 450 |
Technical Specifications Table
Technical Specifications Table
| Parameter | Value |
|---|---|
| Inductor Tolerance | ±10% |

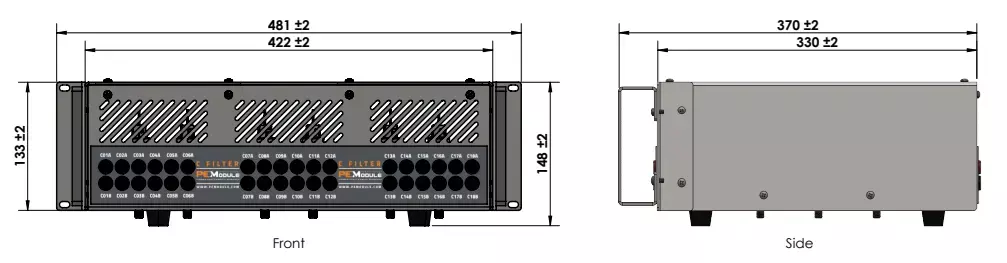

| Dimensions | 3U (5.25” H) x 19” Rack Width |
| Weight | Weighs only 9 kg for easy handling |
