Electronics manufacturing service
How it works
What sets our prototyping and production service apart is how it is fast-tracked. Each project will get assigned to a dedicated specialist who will walk the product through every step in the manufacturing process, from engineering and design input to the final deliverables.

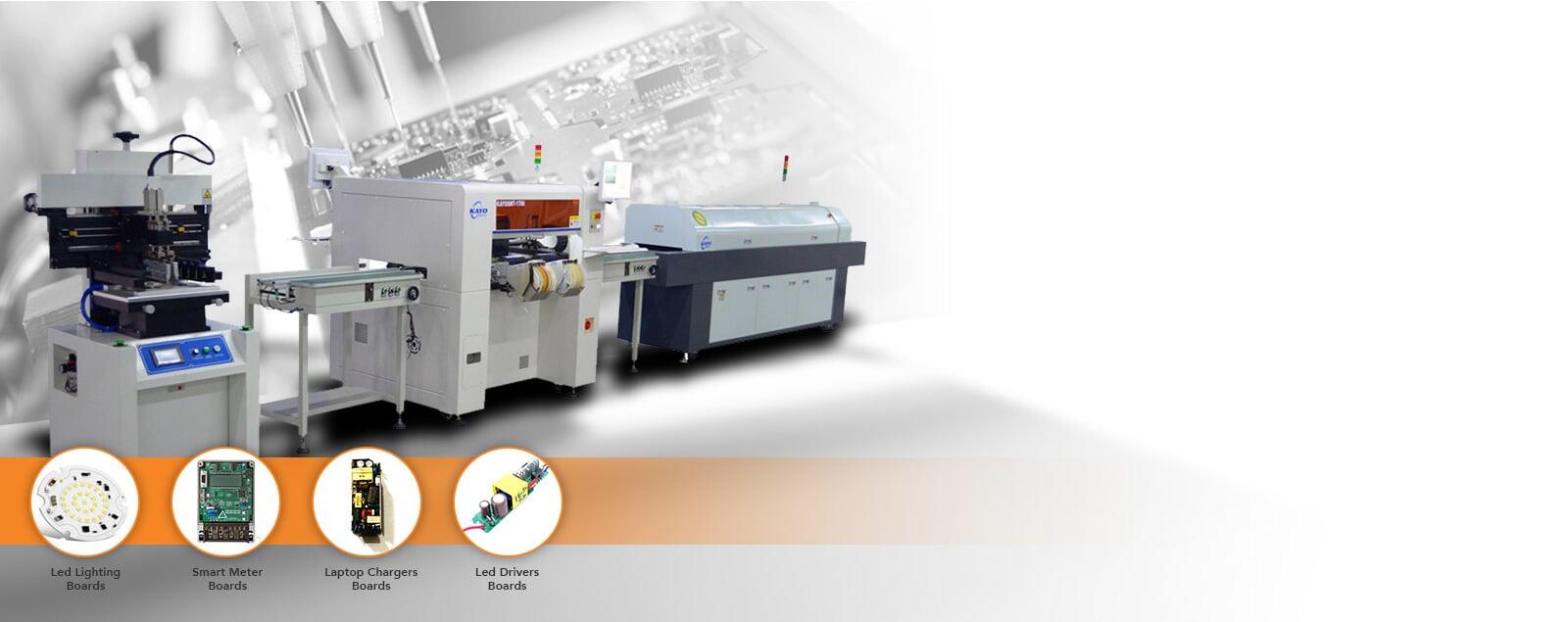

Every PCB that we manufacture goes through a standard process of preparation, assembly and test. These processes have the solid foundation of time-proven experience, balanced with continual enhancements to stay current with the latest production techniques and systems.
Design innovators, Engineers and Investors, like you, who are looking for that same level of manufacturing quality and trust for their NPI prototype builds and production —just completed faster. At PEModule, this is exactly what our prototyping service provides.
PEModule plays a vital role in localization electronics in Egypt by providing high-quality cost-effective PCB assembly service. With our in-house Electronics Assembly Services, we can cover most of the market needs with the help of high-end PCB assembly machines from Germany, Japan and China. Our target sectors in smart meters, TVs, Led bulbs, Battery Chargers, computer accessories, ... etc. Also, we support start-up sectors as they will be up-coming generation. We are performing single and double-sided placement of all components TH or SMT
Specifications:
| Assembly Options | We offer Surface Mount (SMT), Thru-Hole (THT) and hybrid of both. We also offer single or double-sided placement. |
| Types of Solder | We offer both leaded and lead-free high quality Japanese solder paste and solder wire (RoHS Compliant) assembly services for our customers |
| Stencils | We use laser cut stainless steel stencils to ensure high reliability for fine pitch and BGA components. Electro-polishing is available upon request. |
| Component Size | Passive Component: we can accept components as small as 0402. BGA: We have the ability to handle BGA of 0.25mm pitch . Fine Pitch Parts: we can assemble 0.25mm fine pitch parts. |
| Board Dimension | We accept parts in Reels, Cut Tape, Tube & Tray, Loose Parts (for through hole component or manually assembly SMT only!) and Bu |
| Board Dimension | M in Board Size: 50mm x 50mm (Boards smaller than this size need to be panelized) Max Board Size: 290mm x 600mm |

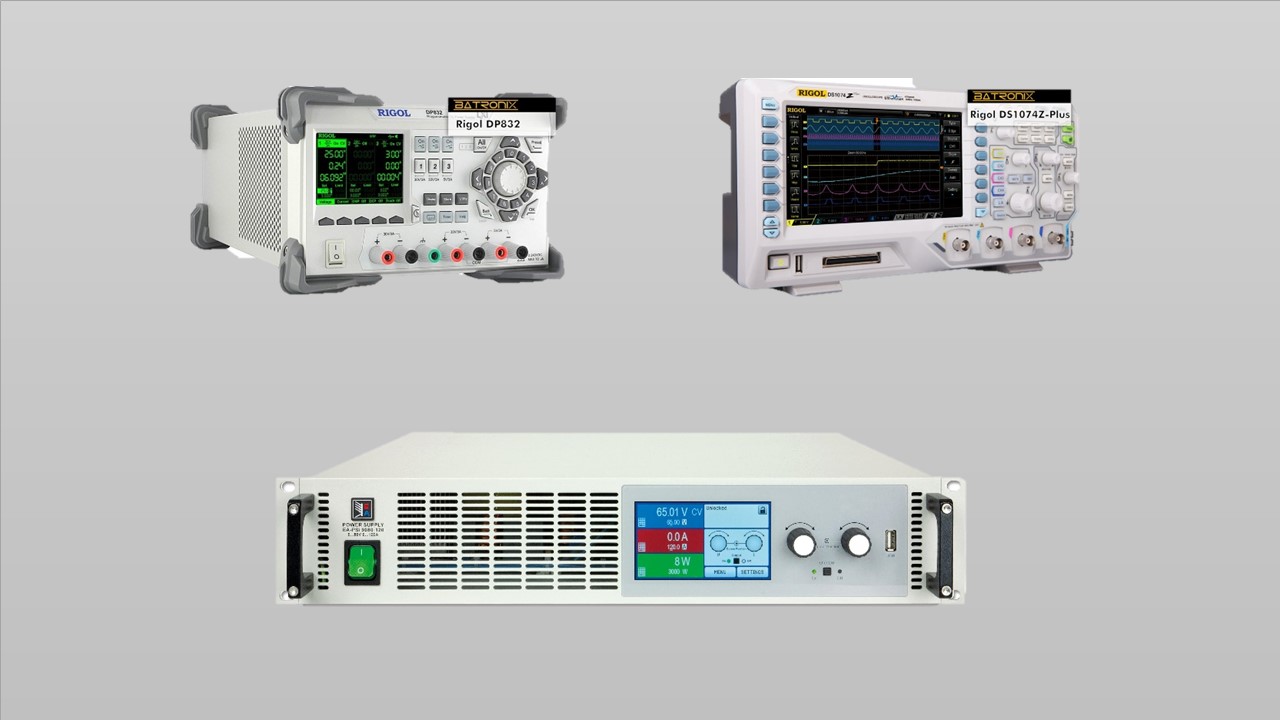

LAB CAPABILITIES
- Programable Power Supply (Germany)
- PV Emulator (Germany)
- Power Function Generator (Germany)
- Digital Oscilloscopes (USA)
- Logic and Protocol Analyzer (USA)
- Workbench low-power power supply (USA)
- Current and Differential Probes (USA)
- Thermal Camera (USA)

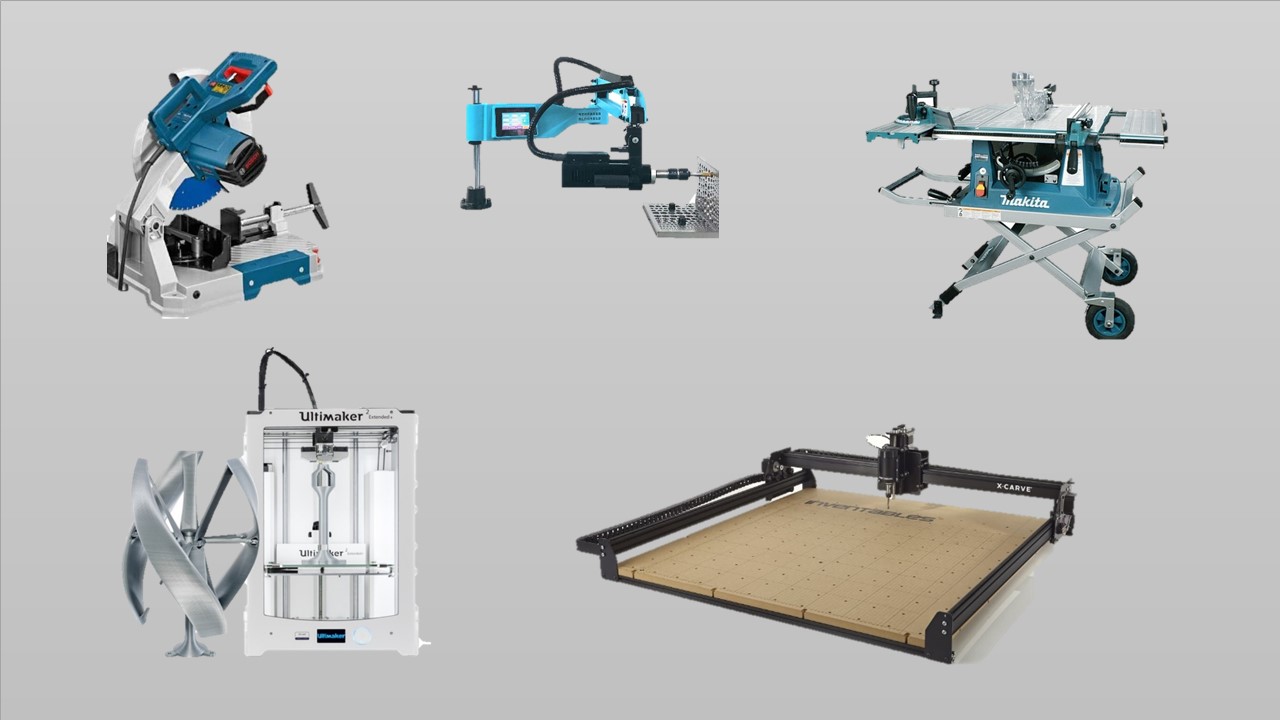

WORKSHOP CAPABILITIES
- Inventible 3 axis CNC Machine
- Ultimaker 2 3D Printer
- Makita Telescopic Circular Saw
- Makita Table Circular Saw
- Bosch Sparkless Circular Saw
- Semi-Automatic Tapping and Threading Arm
